VATS Bypass module for Buick Cadillac Chevrolet Oldsmobile Pontiac

1987-2005 VATS Bypass module for GM vehicles

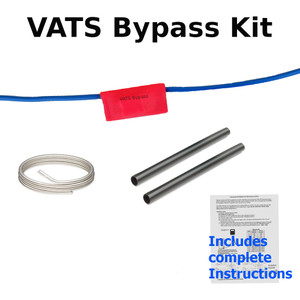

This kit includes everything needed to bypass the Key part of the VATS system:

• VATS Bypass module with 15 ignition key values included
• Solder
• Heat Shrink
• Wire ties
• Complete Instruction

Application:

Make: Buick Model: 1998-2005 Century, 1994-2005 Regal, 1990-1999 Riviera, 1992-1999 LeSabre, 1991-1996 Park Avenue, 1990-1992 Reatta, 1994-1996 Roadmaster.

Make: Cadillac Model: 1987-1993 Allante, 1994-1999 Concours, 1990-1999 Deville, 1989-2003 Eldorado, 1993-1995 Fleetwood, 1989-1997 Seville.

Make: Chevrolet Model: 1989-2002 Camaro, 1995-1996 Caprice, 1985-2004 Corvette, 1995-1996 Impala, 1994-2000 Lumina Car, 1994-1999 Monte Carlo.

Make: Oldsmobile Model: 1995-2000 Aurora, 1994-1996 Cutlass, 1994-1997 Cutlass Supreme, 1992-1999 Eighty Eight, 1997-1999 LSS, 1990-1996 Ninety Eight, 1991-1998 Regency, 1990-1992 Toronado.

Make: Pontiac Model: 1992-1999 Bonneville, 1988-2002 Firebird, 1994-1996 Grand Prix, 1988-2002 Trans Am

The VATS system: The GM VATS (Vehicle Anti-Theft System) system uses a black pellet in the metal part of the ignition key. The VATS decoder send a 'key OK' signal to the PCM/ECM when the proper key is detected. Without this signal, the fuel injectors will shut down within the first 3 seconds.

The VATS problem: The VATS system may become problematic with age. Increased wear, and higher resistance due to dust and corrosion can lead to ignition key readings that prevent the vehicle from starting.

The easy Solution: Bypass the ignition Key part of the VATS system. This module is compatible with any key value. It offers 15 select-able options, each corresponding to a valid ignition key value.

A proper fitting ignition Key will still be needed to start the vehicle. But the problematic chip detection circuit will be bypassed with this kit.
