How to Replace the Headlight Actuator Module on 1993-2002 Pontiac Firebird
REMOVAL PROCEDURE
CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.
(1) Disconnect the negative battery cable.

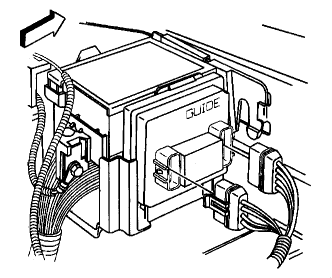

(2) Disconnect the headlamp door opening actuator control module electrical connectors.
(3) Remove the headlamp door opening actuator control module from the forward lamp harness bracket.
INSTALLATION PROCEDURE

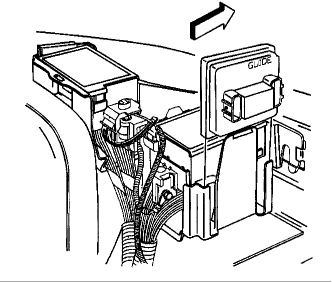

(1) Install the headlamp opening door actuator control module to the forward lamp harness bracket.
(2) Slide the module into the bracket until module locks into place.

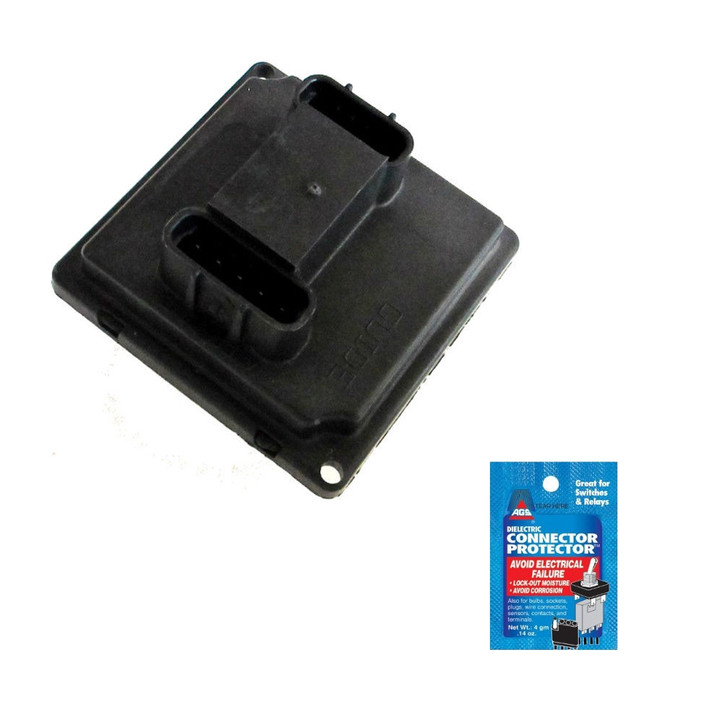

(3) Firebird Headlight Control Module
(4) Connect the negative battery cable.
